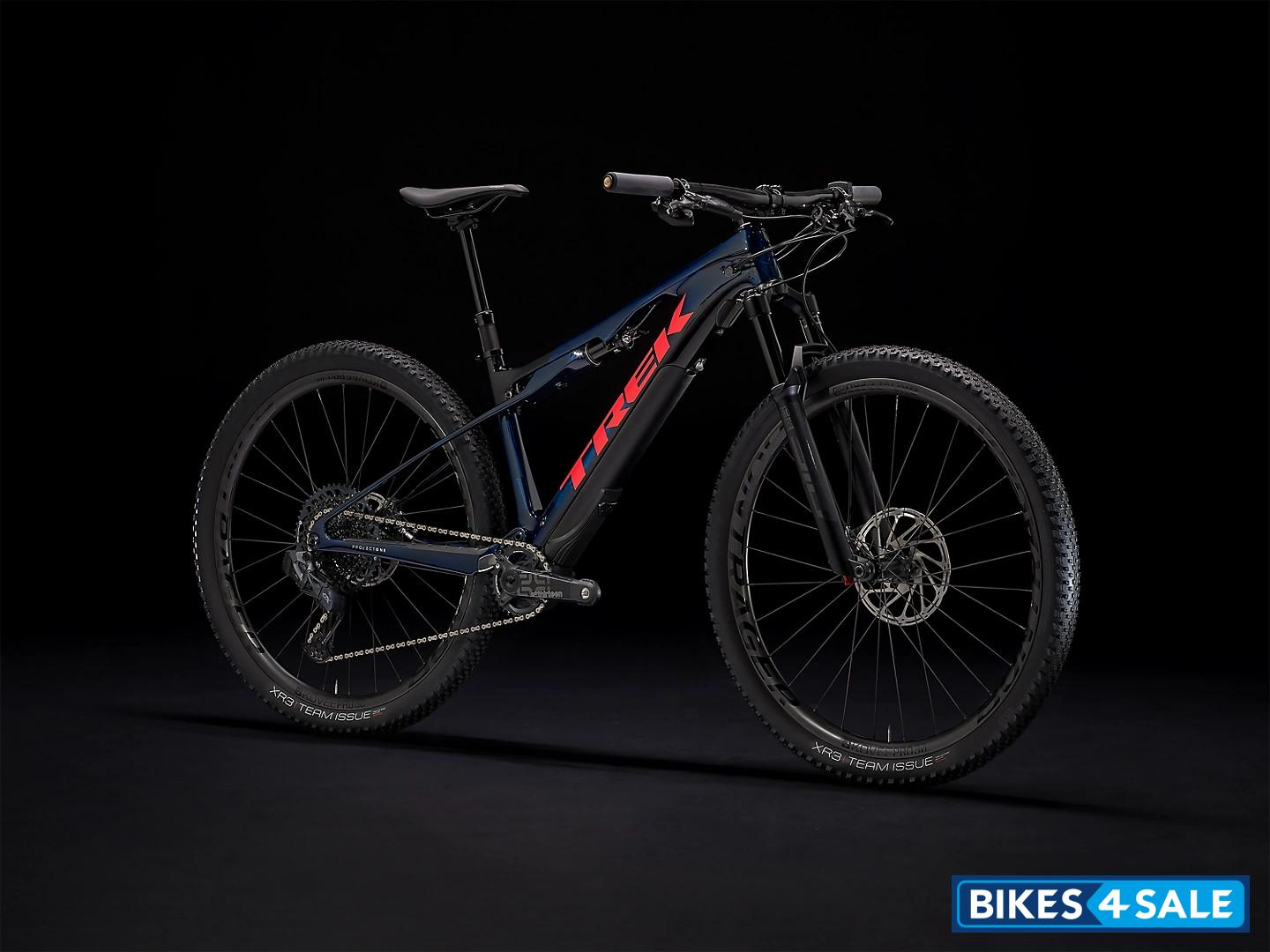

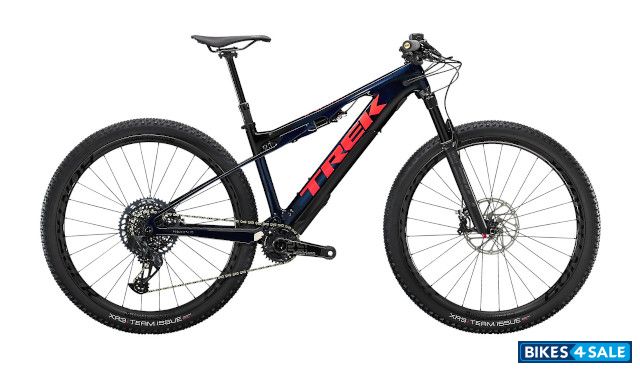

Trek E-Caliber 9.8 GX AXS

Price, review, features and specs

Rate Trek E-Caliber 9.8 GX AXS:
4.0/5 (5 votes)
Add To Compare
Write a Review
Trek E-Caliber 9.8 GX AXS Price $ 9199 [Alabama, United States]

The given price can change depending on the colour, accessories and other features.

Country, City Showroom Price On Road Price
United States, Alabama $ 9199 --
United States, Alaska $ 9199 --
United States, Arizona $ 9199 --
United States, Atlanta $ 9199 --
United States, Austin $ 9199 --
United States, Baltimore $ 9199 --
United States, Boston $ 9199 --
View price in other cities
Buy new Trek E-Caliber 9.8 GX AXS

Book a Test Drive through Bikes4Sale and we will try to get you the best offer for Trek E-Caliber 9.8 GX AXS.

For Exciting Offers, Book a Test Drive
4564
Features
- Smart software for the trail
- Removable drivepack
- OCLV Mountain Carbon
- IsoStrut
- Knock Block
- Suspension Calculator
- Complete Tubeless System
Similar Bicycles
Colours

Radio Red/Black
NavySmoke/White
Marigold/Red/Black
Blue Smoke/Coral

Technical Specifications
Vehicle TypeBicycle
FuelElectric
StemSize : S, M - Bontrager Kovee Pro, 35 mm, Knock Block, Blendr compatible, 13 degree, 60 mm length
Size : L, XL - Bontrager Kovee Pro, 35 mm, Knock Block, Blendr compatible, 13 degree, 70 mm length
HandlebarBontrager Line Pro, OCLV Carbon, 35 mm, 15 mm rise, 750 mm width
ForkRockShox SID Select+, DebonAir spring, Charger 2 RL damper, tapered steerer, 44 mm offset, Boost110, 15 mm Maxle Stealth, 120 mm travel
SeatpostSize : S - Bontrager Line Elite Dropper, 100 mm travel, MaxFlow, internal routing, 31.6 mm, 340 mm length
Size : M, L, XL - Bontrager Line Elite Dropper, 150 mm travel, MaxFlow, internal routing, 31.6 mm, 440 mm length
GripESI Chunky
ChainSRAM GX Eagle, 12 speed
ShiftersSRAM GX Eagle AXS, 12 speed
SaddleBontrager P3 Verse Elite, stainless steel rails, 145 mm width
HeadsetKnock Block Integrated, 62-degree radius, cartridge bearing, 1-1/8'' top, 1.5'' bottom
Derailleur : RearSRAM GX Eagle AXS
CassetteSRAM Eagle XG-1275, 10-52, 12 speed
Motor Details
Fazua Evation Drive Pack, 20mph max assist
Electricals
BatteryFazua Evation 1.0, 250Wh
ChargerFazua Evation charger, 90-120V
ControllerFazua Remote bX
Brakes
Front BrakeSRAM G2 RSC 4-piston hydraulic disc
Brake Rotor : SRAM CenterLine, 6-bolt, round edge, 180 mm
Rear BrakeSRAM G2 RSC 4-piston hydraulic disc
Brake Rotor : SRAM CenterLine, 6-bolt, round edge, 180 mm
Chassis and Suspension
FrameOCLV Mountain Carbon main frame & stays, IsoStrut, tapered head tube, Knock Block, Control Freak internal routing, Boost148, 60 mm travel
Tyres
Wheels / RimFront : Bontrager Kovee Pro 30 Carbon, Tubeless Ready, 6-bolt, Boost 110, 15 mm thru axle
Rear : Bontrager Kovee Pro 30 Carbon, Tubeless Ready, Rapid Drive 108, 6-bolt, Boost 110, 15 mm thru axle
Rim strip : Bontrager TLR
Front TyreBontrager XR3 Team Issue, Tubeless Ready, Inner Strength sidewall, aramid bead, 120tpi, 29 x 2.40''
Rear TyreBontrager XR3 Team Issue, Tubeless Ready, Inner Strength sidewall, aramid bead, 120tpi, 29 x 2.40''
Dimensions
Length x Width x Height-- x -- x -- mm
Weight17.47 kg
Additional Details
Sizes : S, M, L, XL
Shock : Trek IsoStrut, Fox Performance shock, air spring, DPS 2-position remote damper, 235x32.5mm
Suspension lever : Bontrager Drop Lock remote
Crank arm :
Size : S, M, L - E*thirteen E*spec Race Carbon, 32T, 170 mm length
Size : XL - E*thirteen E*spec Race Carbon, 32T, 175 mm length
