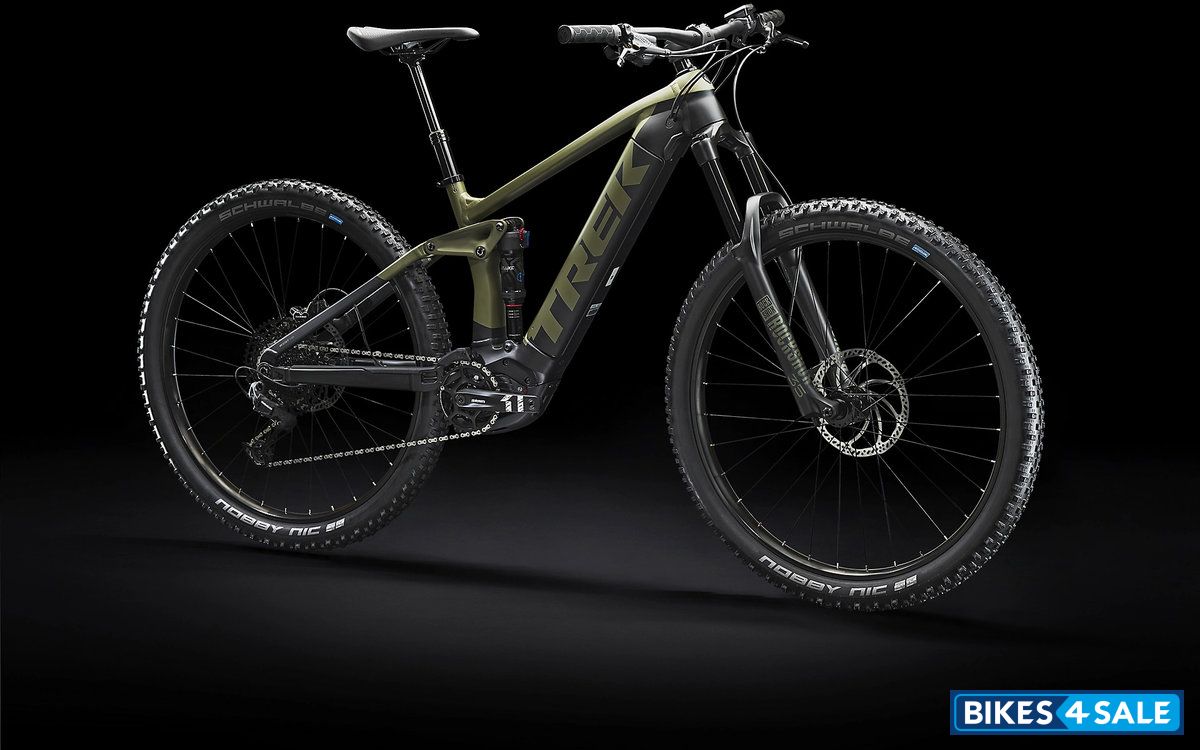

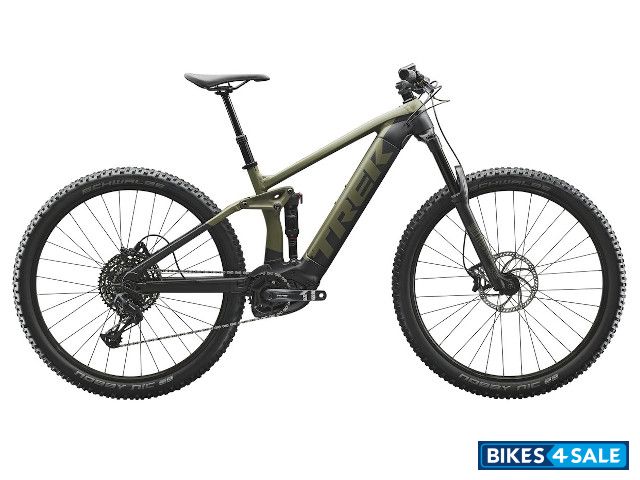

Trek Rail 5

Price, review, features and specs

Rate Trek Rail 5:
3.8/5 (6 votes)
Add To Compare
Write a Review
Trek Rail 5 Price $ 5499 [Alabama, United States]

The given price can change depending on the colour, accessories and other features.

Country, City Showroom Price On Road Price
United States, Alabama $ 5499 --
United States, Alaska $ 5499 --
United States, Arizona $ 5499 --
United States, Atlanta $ 5499 --
United States, Austin $ 5499 --
United States, Baltimore $ 5499 --
United States, Boston $ 5499 --
View price in other cities
Buy new Trek Rail 5

Book a Test Drive through Bikes4Sale and we will try to get you the best offer for Trek Rail 5.

For Exciting Offers, Book a Test Drive
4667
Features
- Removable Integrated Battery
- Custom eMTB Lite mode
- New Bosch Performance Line CX
- Knock Block
- Active Braking Pivot
- Integrated Speed Sensor
- Suspension Calculator
- Mino Link Adjustable Geometry
Colours

Matte Olive Grey/Trek Black

Technical Specifications
Vehicle TypeBicycle
FuelElectric
Load Carrying CapacityCombined weight of bicycle, rider, and cargo of 300 pounds (136 kg)
Top Speed32 kmph
StemBontrager Rhythm Comp, 31.8 mm, Knock Block, 0 degree, 50 mm length
HandlebarBontrager alloy, 31.8 mm, 15 mm rise, 750 mm width
ForkRockShox 35 Gold RL, DebonAir spring, Motion Control damper, e-MTB optimized, tapered steerer, 44 mm offset, Boost110, 15 mm Maxle Stealth, 160 mm travel
SeatpostSize : S - TranzX JD-YSP18, 100 mm travel, internal routing, 31.6 mm, 361 mm length
Size : M, L, XL - TranzX JD-YSP18, 130 mm travel, internal routing, 31.6 mm, 425 mm length
GripBontrager XR Trail Comp, nylon lock-on
CranksetSRAM X1 1000, 34T, 165 mm length
PedalsVP-536 nylon platform
ChainSRAM SX Eagle, 12 speed
ShiftersSRAM SX Eagle single-click, 12 speed
SaddleBontrager Arvada, steel rails, 138 mm width
Derailleur : RearSRAM SX Eagle
Hub : FrontBontrager alloy, sealed bearing, alloy axle, 6-bolt, Shimano 8/9/10 freehub, Boost148, 12 mm thru axle
Hub : RearBontrager sealed bearing, alloy axle, 6-bolt, Boost110, 15 mm thru axle
CassetteSRAM PG-1210 Eagle, 11-50, 12 speed
Chainrings34T
Motor Details
Bosch Performance CX, magnesium motor body, 250 watt, 85 Nm, 20mph
Display
Bosch Purion
Electricals
BatteryBosch PowerTube 500
ChargerBosch compact 2A (100-240V) charger
ControllerBosch Purion
Brakes
Front BrakeTektro HD-M745 4-piston hydraulic disc, Tektro, 203 mm, 6-bolt
Rear BrakeTektro HD-M745 4-piston hydraulic disc, Tektro, 203 mm, 6-bolt
Chassis and Suspension
FrameAlpha Platinum Aluminum, Removable Integrated Battery (RIB), tapered head tube, Control Freak internal routing, magnesium rocker link, Motor Armor, Mino Link, ABP, Boost148, 12 mm thru axle, 150 mm travel
Tyres
Wheels / RimAlex MD35, tubeless compatible, 32-hole, 35 mm width, presta valve
Front TyreBontrager XR4 Comp, wire bead, 30 tpi, 29 x 2.60''
Rear TyreBontrager XR4 Comp, wire bead, 30 tpi, 29 x 2.60''
Dimensions
Length x Width x Height-- x -- x -- mm
Weight23.53 kg
Additional Details
Shock : RockShox Deluxe Select Plus, 230 x 57.5 mm
Max compatible fork travel : 170 mm (580 mm axle-to-crown)
