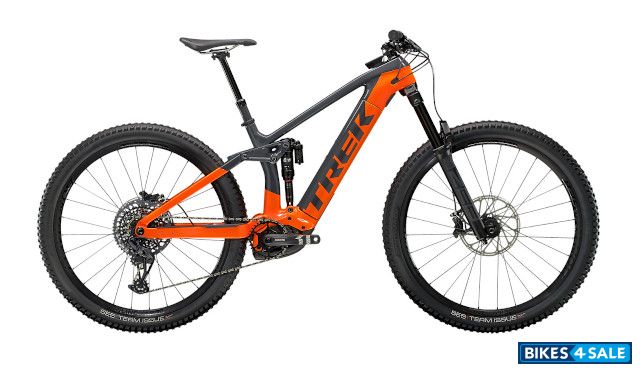

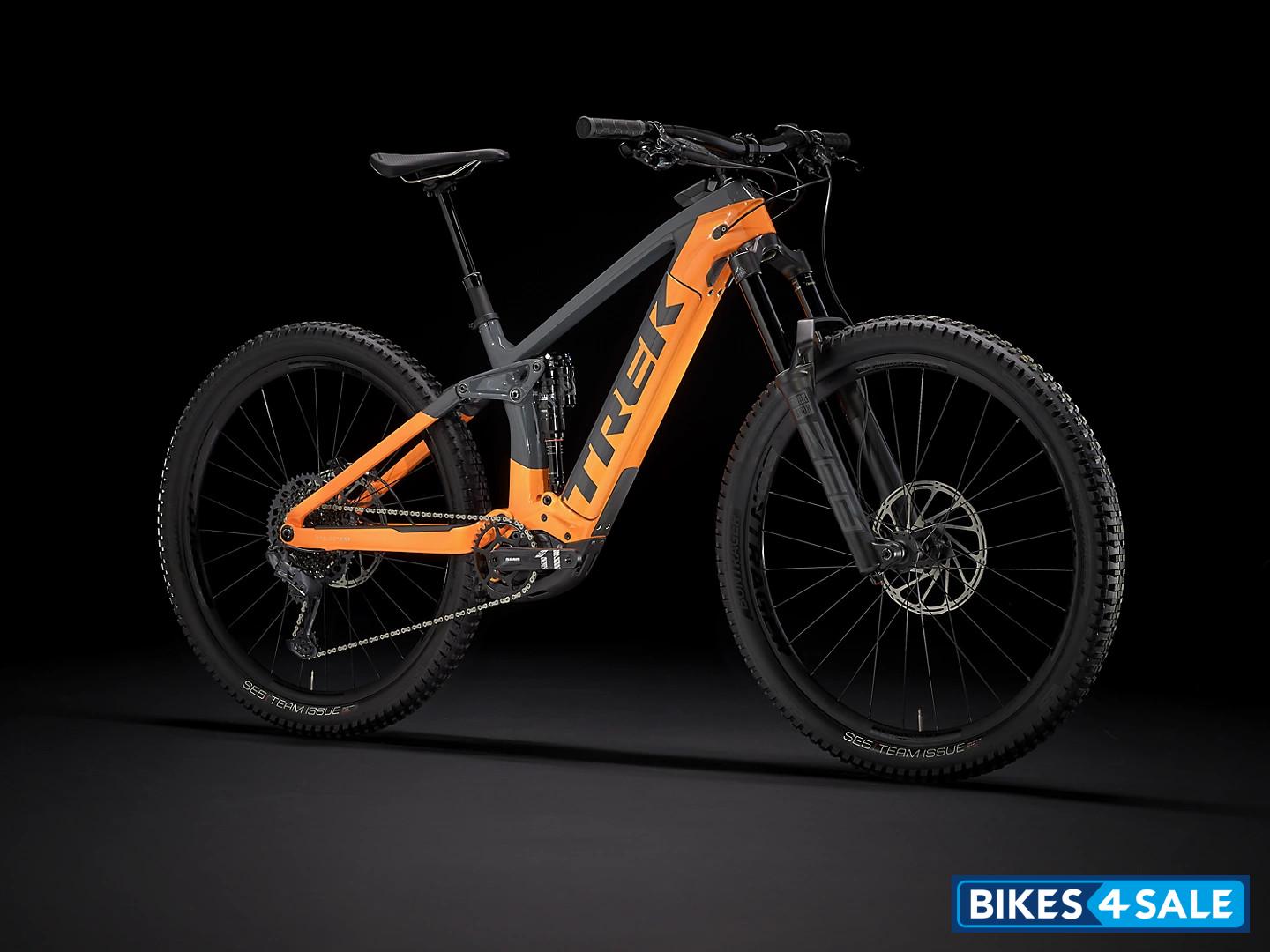

Trek Rail 9.8

Price, review, features and specs

Rate Trek Rail 9.8:
4.0/5 (4 votes)
Add To Compare
Write a Review
Trek Rail 9.8 Price $ 8499 [Alabama, United States]

The given price can change depending on the colour, accessories and other features.

Country, City Showroom Price On Road Price
United States, Alabama $ 8499 --
United States, Alaska $ 8499 --
United States, Arizona $ 8499 --
United States, Atlanta $ 8499 --
United States, Austin $ 8499 --
United States, Baltimore $ 8499 --
United States, Boston $ 8499 --
View price in other cities
Buy new Trek Rail 9.8

Book a Test Drive through Bikes4Sale and we will try to get you the best offer for Trek Rail 9.8.

For Exciting Offers, Book a Test Drive
4387
Features
- RockShox Super Deluxe Thru Shaft damper
- Removable Integrated Battery
- Custom eMTB Lite mode
- New Bosch Performance Line CX
- OCLV Mountain Carbon
- Active Braking Pivot
- Complete Tubeless System
- Integrated Speed Sensor
- Suspension Calculator
- Mino Link Adjustable Geometry
- Knock Block
Similar Bicycles
Colours

Gloss Purple Phaze/Matte Raw Carbon
Solid Charcoal/Radioactive Orange
Solid Charcoal to Root Beer Ano Decal

Technical Specifications
Vehicle TypeBicycle
FuelElectric
Load Carrying CapacityCombined weight of bicycle, rider, and cargo of 300 pounds (136 kg)
Top Speed32 kmph
StemBontrager Line Pro, 35 mm, Knock Block, Blendr compatible, 0 degree, 45 mm length
HandlebarBontrager Line Pro, OCLV Carbon, 35 mm, 27.5 mm rise, 780 mm width
ForkRockShox ZEB Select+, DebonAir spring, Charger 2.1 RC damper, eMTB optimized crown, tapered steerer, 44 mm offset, Boost110, 15 mm Maxle Stealth, 160 mm travel
SeatpostSize : S - Bontrager Line Elite Dropper, 100 mm travel, internal routing, 31.6 mm, 340 mm length
Size : M - Bontrager Line Elite Dropper, 150 mm travel, internal routing, 31.6 mm, 440 mm length
Size : L, XL - Bontrager Line Elite Dropper, 170 mm travel, internal routing, 31.6 mm, 480 mm length
GripBontrager XR Trail Elite, alloy lock-on
CranksetSRAM X1 1000, 34T, 165 mm length
PedalsVP-536 nylon platform
ChainSRAM GX Eagle, 12 speed
ShiftersSRAM GX Eagle, 12 speed
SaddleBontrager Arvada, austenite rails, 138 mm width
HeadsetKnock Block Integrated, 58-degree radius, cartridge bearing, 1-1/8'' top, 1.5'' bottom
Derailleur : RearSRAM GX Eagle
Hub : FrontBontrager alloy, sealed bearing, alloy, 6-bolt, Rapid Drive 108, Shimano MicroSpline freehub, Boost148, 12 mm thru axle
Hub : RearBontrager alloy, sealed bearing, alloy axle, 6-bolt, Boost110, 15 mm thru axle
CassetteSRAM Eagle XG-1275, 10-52, 12 speed
Chainrings34T
Motor Details
Bosch Performance CX, magnesium motor body, 250 watt, 85 Nm, 20mph
Electricals
BatteryBosch PowerTube 625
ChargerBosch standard 4A (100-240V) charger
ControllerBosch Kiox with Anti-theft solution
Brakes
Front BrakeSRAM Code R 4-piston hydraulic disc
Brake Rotor : SRAM CenterLine, 6-bolt, round-edge, 180 mm
Rear BrakeSRAM Code R 4-piston hydraulic disc
Brake Rotor : SRAM CenterLine, 6-bolt, round edge, 200 mm
Chassis and Suspension
FrameOCLV Mountain Carbon main frame, Removable Integrated Battery (RIB), tapered head tube, Knock Block, Control Freak internal routing, magnesium rocker link, Motor Armor, Mino Link, ABP, Boost148, 12 mm thru axle, 150 mm travel
Tyres
Wheels / RimFront : Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15 mm thru axle
Rear : Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 54, 6-bolt, Boost148, 12 mm thru axle
Front TyreBontrager SE5 Team Issue, Tubeless Ready, Core Strength sidewall, aramid bead, 60 tpi, 29 x 2.60''
Rear TyreBontrager SE5 Team Issue, Tubeless Ready, Core Strength sidewall, aramid bead, 60 tpi, 29 x 2.60''
Dimensions
Length x Width x Height-- x -- x -- mm
Weight22.52 kg
Additional Details
Shock : NEW RockShox Super Deluxe Ultimate RT3, DebonAir spring, Thru Shaft 3-position damper, 230 x 57.5 mm
Max compatible fork travel : 170 mm (580 mm axle-to-crown)
