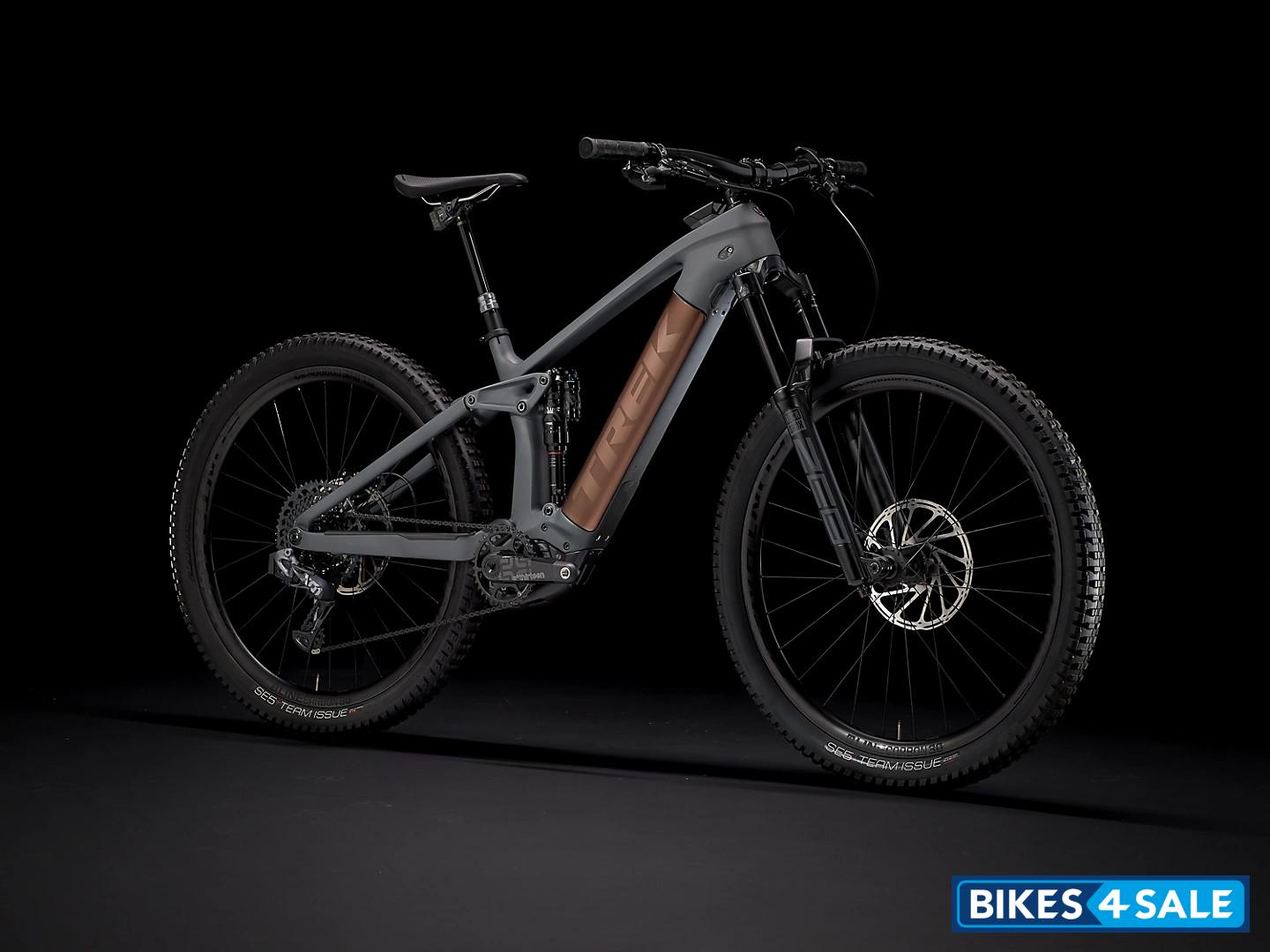

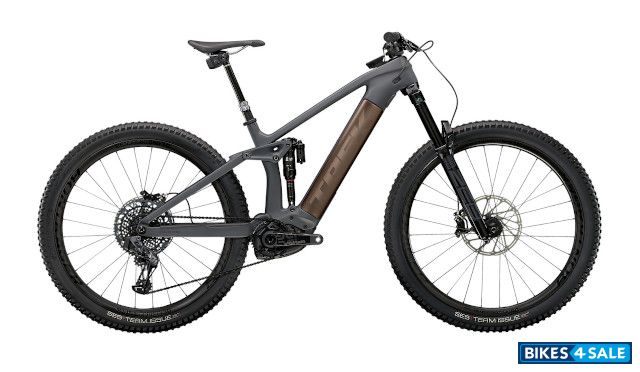

Trek Rail 9.9 X01 AXS

Price, review, features and specs

Rate Trek Rail 9.9 X01 AXS:
4.0/5 (6 votes)
Add To Compare
Write a Review
Trek Rail 9.9 X01 AXS Price $ 12999 [Alabama, United States]

The given price can change depending on the colour, accessories and other features.

Country, City Showroom Price On Road Price
United States, Alabama $ 12999 --
United States, Alaska $ 12999 --
United States, Arizona $ 12999 --
United States, Atlanta $ 12999 --
United States, Austin $ 12999 --
United States, Baltimore $ 12999 --
United States, Boston $ 12999 --
View price in other cities
Buy new Trek Rail 9.9 X01 AXS

Book a Test Drive through Bikes4Sale and we will try to get you the best offer for Trek Rail 9.9 X01 AXS.

For Exciting Offers, Book a Test Drive
1597
Features
- RockShox Super Deluxe Thru Shaft damper
- Removable Integrated Battery
- Custom eMTB Lite mode
- New Bosch Performance Line CX
- OCLV Mountain Carbon
- Active Braking Pivot
- Complete Tubeless System
- Integrated Speed Sensor
- Carbon Care Wheel Loyalty Program
- Suspension Calculator
- Mino Link Adjustable Geometry
- Knock Block
Colours

Gloss Purple Phaze/Matte Raw Carbon
Solid Charcoal/Radioactive Orange
Solid Charcoal to Root Beer Ano Decal

Technical Specifications
Vehicle TypeBicycle
FuelElectric
Load Carrying CapacityCombined weight of bicycle, rider, and cargo of 300 pounds (136 kg)
Top Speed32 kmph
StemBontrager Line Pro, 35 mm, Knock Block, Blendr compatible, 0 degree, 45 mm length
HandlebarBontrager Line Pro, OCLV Carbon, 35 mm, 27.5 mm rise, 780 mm width
ForkRockShox ZEB Ultimate, DebonAir spring, Charger 2.1 RC2 damper, e-MTB optimzed crown, tapered steerer, 44 mm offset, Boost110, 15 mm Maxle Stealth, 160 mm travel
SeatpostSize : S - RockShox Reverb AXS, 100 mm travel, wireless, 31.6 mm, 340 mm length
Size : M - RockShox Reverb AXS, 150 mm travel, wireless, 31.6 mm, 440 mm length
Size : L, XL - RockShox Reverb AXS, 170 mm travel, wireless, 31.6 mm, 480 mm length
GripBontrager XR Trail Elite, alloy lock-on
CranksetE*thirteen E*spec Race carbon, 34T, 165 mm length
PedalsVP-536 nylon platform
ChainSRAM XX1 Eagle, 12 speed
ShiftersSRAM Eagle AXS, wireless, 12-speed
SaddleBontrager Arvada, austenite rails, 138 mm width
HeadsetKnock Block Integrated, 58-degree radius, cartridge bearing, 1-1/8'' top, 1.5'' bottom
Derailleur : RearSRAM X01 Eagle AXS
CassetteSRAM XG-1295 Eagle, 10-52, 12 speed
Chainrings34T
Motor Details
Bosch Performance CX, magnesium motor body, 250 watt, 85 Nm, 20mph
Electricals
BatteryBosch PowerTube 625
ChargerBosch standard 4A (100-240V) charger
ControllerBosch Kiox with Anti-theft solution
Brakes
Front BrakeSRAM Code RSC hydraulic disc
Brake Rotor : SRAM CenterLine, 6-bolt, round-edge, 180 mm
Rear BrakeSRAM Code RSC hydraulic disc
Brake Rotor : SRAM CenterLine, 6-bolt, round edge, 200 mm
Chassis and Suspension
FrameOCLV Mountain Carbon main frame, Removable Integrated Battery (RIB), tapered head tube, Knock Block, Control Freak internal routing, magnesium rocker link, Motor Armor, Mino Link, ABP, Boost148, 12 mm thru axle, 150 mm travel
Tyres
Wheels / RimFront : NEW Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless Ready, 6-bolt, Boost110, 15 mm thru axle
Rear : Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless Ready, Rapid Drive 108, 6-bolt, SRAM XD driver, Boost148, 12 mm thru axle
Front TyreBontrager SE5 Team Issue, Tubeless Ready, Core Strength sidewall, aramid bead, 60 tpi, 29 x 2.60''
Rear TyreBontrager SE5 Team Issue, Tubeless Ready, Core Strength sidewall, aramid bead, 60 tpi, 29 x 2.60''
Dimensions
Length x Width x Height-- x -- x -- mm
Weight22.47 kg
Additional Details
Shock : NEW RockShox Super Deluxe Ultimate RT3, DebonAir spring, Thru Shaft 3-position damper, 230 x 57.5 mm
Max compatible fork travel : 170 mm (580 mm axle-to-crown)
