The given price can change depending on the colour, accessories and other features.
| Country, City | Showroom Price | On Road Price |
|---|---|---|
| United States | $ 12649 | -- |

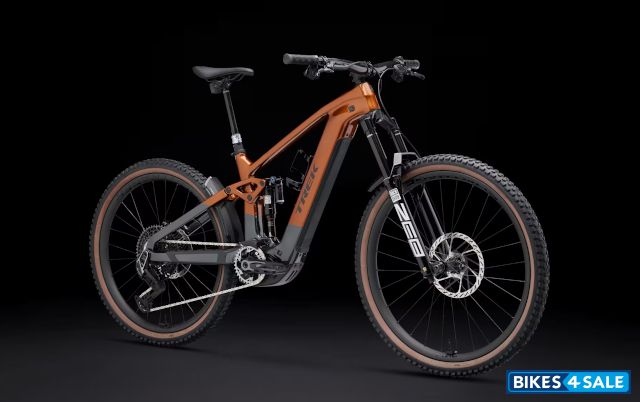

Book a Test Drive through Bikes4Sale and we will try to get you the best offer for Trek Rail Plus 9.9 X0 AXS T-Type Gen 5.
Pennyflake
| Vehicle Type | Bicycle |
| Fuel | Electric |
| Stem | Bontrager Line Pro, 35mm, Blendr compatible, 0 degree, 45mm length |
| Handlebar | Bontrager Line Pro, OCLV Carbon, 35mm, 27.5mm rise, 780mm width |
| Fork | Rockshox ZEB Ultimate, DebonAir spring, Charger 3.1 RC2 damper, tapered steerer, 44mm offset, Boost110, 15mm Maxle Stealth, 160mm travel |
| Seatpost | Size: S RockShox Reverb AXS, 100mm travel, wireless, 34.9mm, 340mm length Size: M, L, XL RockShox Reverb AXS, 170mm travel, wireless, 34.9mm, 480mm length |
| Grip | Bontrager XR Trail Elite, nylon lock-on |
| Crankset | SRAM X0 Eagle, 160mm length |
| Pedals | VP-536 nylon platform |
| Chain | SRAM X0 Eagle, T-Type, 12 speed |
| Saddle | Verse Short Comp, steel rails, 145mm width |
| Derailleur : Rear | SRAM X0 Eagle AXS, T-Type |
| Cassette | SRAM Eagle XS-1295, T-Type, 10-52, 12 speed |
| Chainrings | 1x: 36T |
| Motor Details |
|---|
| Bosch Performance Line CX, 20 mph / 32 km/h max assist (25 km/h max assist in EU and APAC) |
| Electricals | |
|---|---|
| Battery | Bosch PowerTube 800Wh, smart system |
| Charger | Bosch standard 4A, 230V, smart system |
| Controller | Bosch System Controller BRC3100, smart system |
| Brakes | |
|---|---|
| Front Brake | SRAM Code Silver 4-piston hydraulic disc Rotor Size: S, M, L, XL SRAM 6-bolt, 200mm Rotor Size: S, M, L, XL SRAM HS2, 6-bolt, 220mm |
| Rear Brake | SRAM Code Silver 4-piston hydraulic disc Rotor Size: S, M, L, XL SRAM 6-bolt, 200mm Rotor Size: S, M, L, XL SRAM HS2, 6-bolt, 220mm |
| Chassis and Suspension | |
|---|---|
| Frame | OCLV Mountain Carbon, Removable Integrated Battery (RIB 2.0), tapered head tube, guided internal routing, Motor Armor, angle-adjust headset, Mino Link adjustable geometry, adjustable leverage rate, 34.9mm seat tube, ABP, UDH Boost148, 12 mm thru axle, 160 mm travel |
| Rear Suspension | RockShox Super Deluxe Ultimate RC2T, 205x65mm, 180mm travel |
| Tyres | |
|---|---|
| Wheels / Rim | Front Size: S Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle, 27.5'' Size: M, L, XL Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle, 29'' Rear Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless Ready, Rapid Drive 108, 6-bolt, SRAM XD driver, Boost148, 12mm thru axle, 27.5'' |
| Front Tyre | Size: S, M, L, XL Bontrager Brevard RSL SE, Tubeless Ready, triple compound, aramid bead, 60 tpi, 27.5x2.50'' Size: M, L, XL Bontrager Brevard RSL SE, Tubeless Ready, triple compound, aramid bead, 60 tpi, 29x2.50'' |
| Rear Tyre | Size: S, M, L, XL Bontrager Brevard RSL SE, Tubeless Ready, triple compound, aramid bead, 60 tpi, 27.5x2.50'' Size: M, L, XL Bontrager Brevard RSL SE, Tubeless Ready, triple compound, aramid bead, 60 tpi, 29x2.50'' |
