Urban Arrow Shorty Truck: Price, Review, Specs and Features

Price, review, features and specs

Shorty Active PLUS Disc Deore 400Wh Price : € 3.628
Shorty Performance Disc Deore 500Wh Price : € 3.959
Shorty Cargo Line Disc Zee 500Wh Price : € 4.289

Rate Urban Arrow Shorty:

3.3/5 (3 votes)

Add To Compare
Write a Review

Urban Arrow Shorty Price € 3463 [Almere, Netherlands]

The given price can change depending on the colour, accessories and other features.

Country, City	Showroom Price	On Road Price
Netherlands, Almere	€ 3463	--
Netherlands, Amsterdam	€ 3463	--
Netherlands, Rotterdam	€ 3463	--
Netherlands, The Hague	€ 3463	--

Buy new Urban Arrow Shorty

Book a Test Drive through Bikes4Sale and we will try to get you the best offer for Urban Arrow Shorty.

For Exciting Offers, Book a Test Drive

Similar Trucks

Urban Arrow Family Compare

Urban Arrow Cargo XL Compare

Urban Arrow Cargo L Compare

Urban Arrow Tender 2500 Compare

One Moto deliva Compare

Colours

Black
White

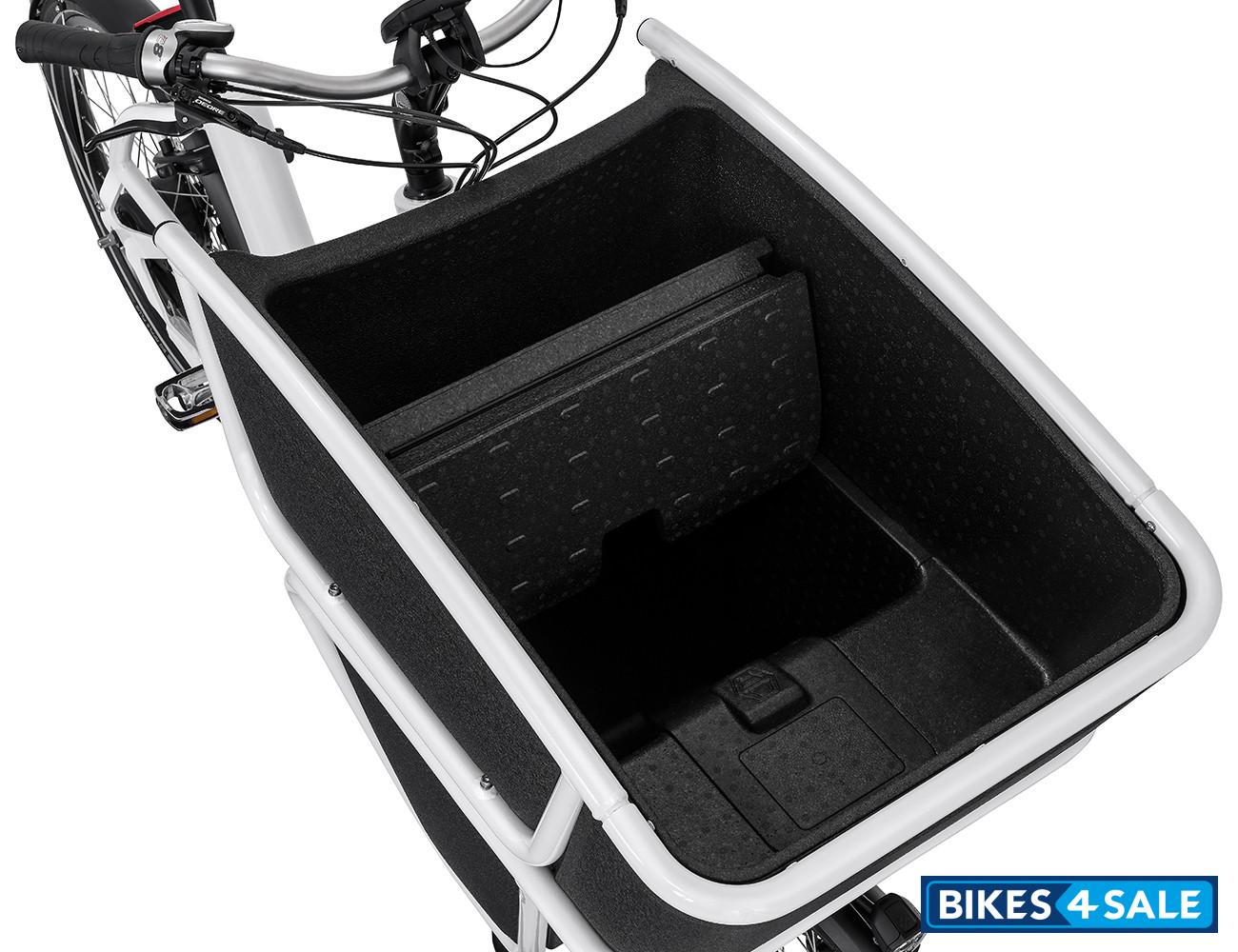

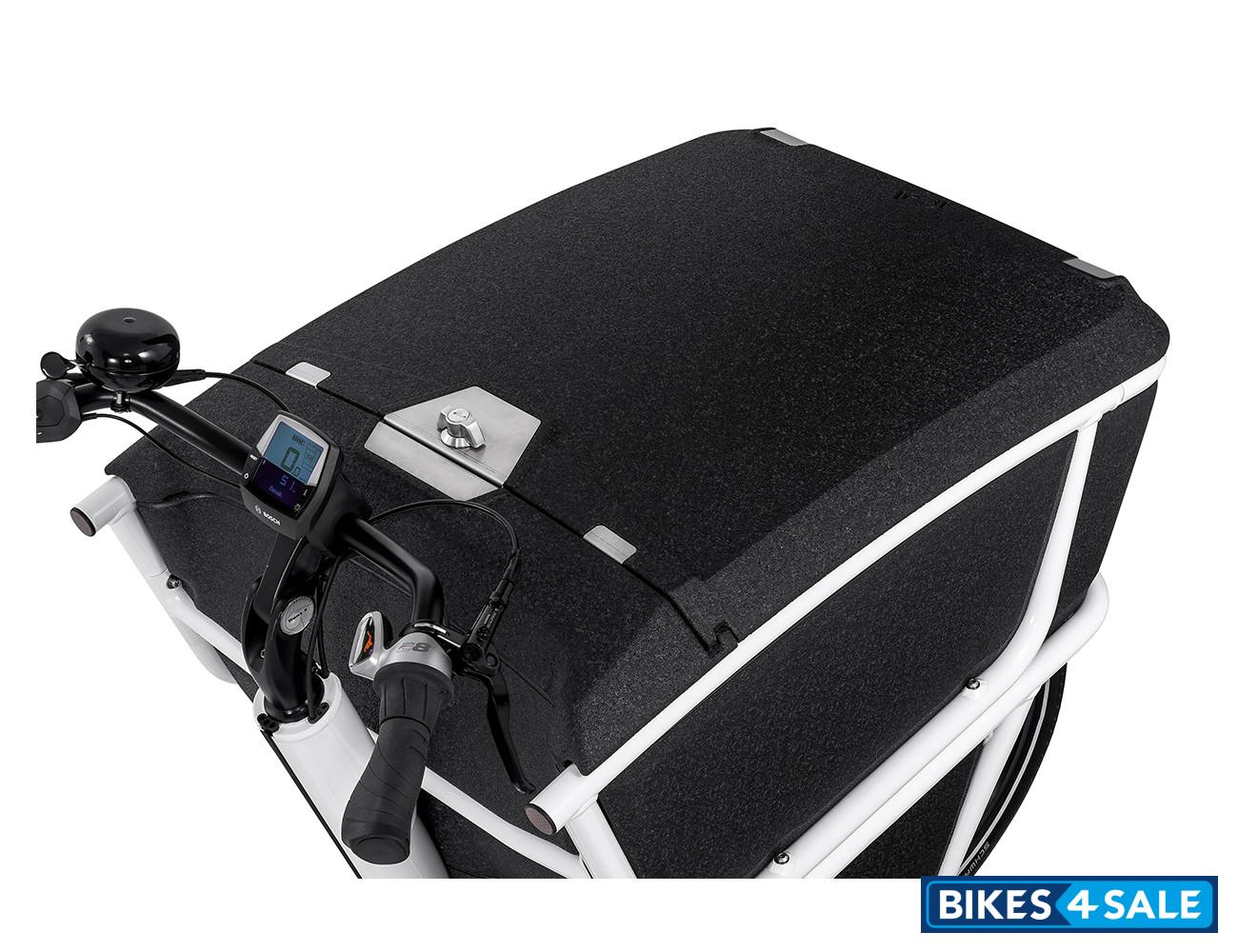

Picture Gallery

◄ Prev Picture

Next Picture ►

Urban Arrow Dealers

BiciCare

Willem de Zwijgerlaan 49 Netherlands

Contact Dealer

Beekhoven Bikes

Draaierweg 16 Netherlands

Contact Dealer

More Dealers

View all Urban Arrow Showrooms

View All Showrooms

Technical Specifications

Vehicle Type	Truck
Fuel	Electric
Stem	TranzX JD-ST17-2 black 1-1/8 25,4 110 mm
Handlebar	Ergotec Moon cruiser 25,4 black
Fork	UA rigid fork
Seatpost	Satori Trident 31,6 400 mm black
Grip	Ergon GC10
Crankset	Lasco EB05 BNI 170 mm
Pedals	C558
Shifters	Enviolo City - CT
Saddle	Selle Royal Rio Plus
Hub : Front	Enviolo Trekking, 36H
Hub : Rear	Shimano IM40, 36H

Motor Details
250 W Bosch Active Line Plus Gen 3,

Display
Bosch Purion

Electricals
Battery	Bosch 400 Wh
Head Lamp	Spanninga Axendo 40
Tail Lamp	Spanninga Plateo XE 6V-36V

Brakes
Front Brake	Shimano Rollerbrake ABRC6000FB; Trektro CL-530-TS (lever)
Rear Brake	Shimano Rollerbrake ABRC6000RC (brake); Trektro CL-530-TS (lever)

Chassis and Suspension
Frame	UA4.2, aluminium

Tyres
Wheels / Rim	Rear rim : Ryde Andra 40 Double wall 26" x 1.75; Sapim spokes (13G) Front rim : Ryde Andra 40 Double wall 20" x 1.75; Sapim spokes (14G)
Front Tyre	Schwalbe Big Ben Plus 55-406
Rear Tyre	Schwalbe Big Ben Plus 55-559

Dimensions
Length x Width x Height	2030 x 700 x 1100 mm
Weight	46 kg

Additional Details
Drive line : Chain, KMC X1 Silver 102L Rear sprocket : Enviolo 17T flat Front sprocket : Lasco 38T, 4 hole, 104BCD Chainguard : Hebie chainglider front 38T, 350R NV16, 16-22T for Enviolo Steering rod : UA Shorty steering rod & linkage Valve : Schrader Rear fender : SKS 65mm 26" Black matte Front fender ; SKS 65mm 20" Black matte Outer Dimensions : L 203cm x W 70cm x H 110cm Max total weight : 190Kg Bike + Rider + Load

Additional Details

Drive line : Chain, KMC X1 Silver 102L
Rear sprocket : Enviolo 17T flat
Front sprocket : Lasco 38T, 4 hole, 104BCD
Chainguard : Hebie chainglider front 38T, 350R NV16, 16-22T for Enviolo
Steering rod : UA Shorty steering rod & linkage
Valve : Schrader
Rear fender : SKS 65mm 26" Black matte
Front fender ; SKS 65mm 20" Black matte
Outer Dimensions : L 203cm x W 70cm x H 110cm
Max total weight : 190Kg Bike + Rider + Load
