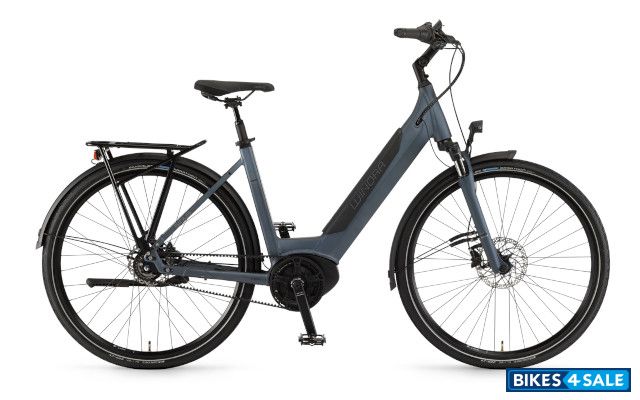

Winora Sinus iR8f Monotube Electric Bicycle

Price, features and specs

Rate Winora Sinus iR8f Monotube:
4.3/5 (3 votes)
Winora Sinus iR8f Monotube Price 3269 [Berlin, Germany]

The given price can change depending on the colour, accessories and other features.

Country, City Showroom Price On Road Price
Germany, Berlin € 3269 --
Germany, Bochum € 3269 --
Germany, Bremen € 3269 --
Germany, Cologne € 3269 --
Germany, Duisburg € 3269 --
Germany, Dusseldorf € 3269 --
Germany, Essen € 3269 --
Germany, Hamburg € 3269 --
Germany, Nuremberg € 3269 --
Germany, Wuppertal € 3269 --
Colours

Modern Blue Matt
Onyx Matt

Technical Specifications
Vehicle TypeBicycle
FuelElectric
Maximum Torque50 Nm
Load Carrying CapacityPermitted Total Weight : 130 Kg
Top Speed25 kmph
StemAlu, winkelverstellbar, Bar bore: 31.8 mm
HandlebarErgobar, oversize, 640 mm
ForkSR Suntour, NEX E25-HLO, Lockout, Steel spring, Travel= 50 mm, Aluminium steerer tube 1 1/8" - 1 1/2" tapered
SeatpostPatent suspension, 31.6 mm, Aluminium
GripHerrmans, Click Ergo - lock on grips
PedalsVP, E461, Aluminium, with Reflector
ChainGates, CarbonDrive
GearShimano Nexus
SaddleSelle Royal, Viento
HeadsetFeimin, A-Head Tapered, ball bearing
Hub : FrontAluminium hub, Centerlock
Hub : RearShimano, Nexus
SpokeStainless spokes, black
ChainringsGates, Aluminium, 50 teeth
SprocketGates, sprocket, 24 - teeth
Bottom BracketIntegrated in the motor
StandUrsus, Mooi, Rear stand
Motor Details
Bosch, Active Plus, 250 W
Display
Bosch, Intuvia
Electricals
BatteryBosch, PowerTube, 500 Wh
Head LampBusch & Muller, Upp, 30 lm
Tail LampAXA, Blueline
Brakes
Front BrakeShimano, M445, 160 mm, 2-piston disc brake
Rear BrakeShimano, M445, 160 mm, 2-piston disc brake
Brake LeverShimano, T445, Aluminium
Chassis and Suspension
FrameWinora, Aluminium 6061, Aluminium 6061, Quick-release 5 x 135mm, Disc brake Post Mount
Tyres
Wheels / RimRyde, Zac421, hollow rim, Aluminium
Front TyreSchwalbe, Marathon, 47-622, 28" x 1.75"
Rear TyreSchwalbe, Marathon, 47-622, 28" x 1.75"
TubeDunlop valve
Dimensions
Weight25.5 kg
Additional Details
Crank Arm : Winora, forged, Aluminium
Clamping Ring : Quick release, 34.9 mm
Shift Lever : Shimano, Nexus, Twist shifter, 8 speed
Dynamo : Via system battery
Carrier : Racktime, RT-336, 25.0 kg
Fenders : RPZ, Evo, Chromoplastics
Stand : Ursus, Mooi, Rear stand
Lock : Abus, upgradable over Plus System
