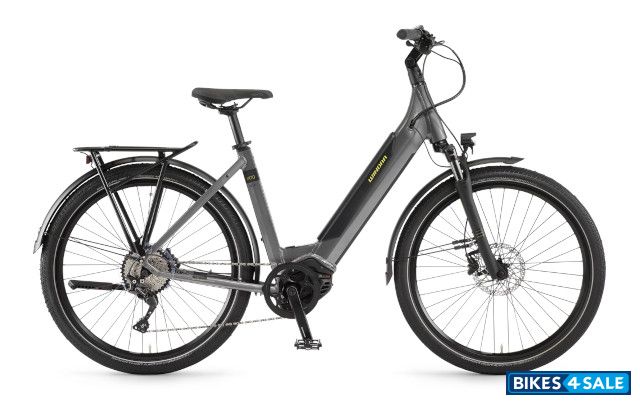

Winora Sinus iX10 Monotube Electric Bicycle

Price, features and specs

Rate Winora Sinus iX10 Monotube:
4.0/5 (2 votes)
Winora Sinus iX10 Monotube Price 3269 [Berlin, Germany]

The given price can change depending on the colour, accessories and other features.

Country, City Showroom Price On Road Price
Germany, Berlin € 3269 --
Germany, Bochum € 3269 --
Germany, Bremen € 3269 --
Germany, Cologne € 3269 --
Germany, Duisburg € 3269 --
Germany, Dusseldorf € 3269 --
Germany, Essen € 3269 --
Germany, Hamburg € 3269 --
Germany, Nuremberg € 3269 --
Germany, Wuppertal € 3269 --
Buy new Winora Sinus iX10 Monotube

Book a Test Drive through Bikes4Sale and we will try to get you the best offer for Winora Sinus iX10 Monotube.

For Exciting Offers, Book a Test Drive
By submitting, you agree to our Terms & Conditions.
9075
Colours

Concrete

Technical Specifications
Vehicle TypeBicycle
FuelElectric
Maximum Torque75 Nm
Load Carrying CapacityPermitted Total Weight : 130 Kg
Top Speed25 kmph
StemAlu, winkelverstellbar, A-head, Bar bore: 31.8 mm
HandlebarErgoriser, oversize, 640 mm
ForkSR Suntour, NEX E25-HLO, Lockout, Steel spring, Travel= 63 mm, Aluminium steerer tube 1 1/8" - 1 1/2" tapered
SeatpostPatent, 31.6 mm, Aluminium
GripXLC, Comfort bo3
PedalsVP, E461, Aluminium, with Reflector
ChainKMC, e10S
SaddleSelle Royal, Viento
HeadsetFeimin, A-Head Tapered, Aluminium, cartridge bearing
Derailleur : RearShimano, Deore M6000
Hub : FrontAlu hub
Hub : RearAlu hub
SpokeSapim, Leader, black
SprocketShimano, HG500, 11 - 42 teeth
Bottom BracketIntegrated in the motor
StandUrsus, Mooi, Rear stand
Motor Details
Bosch, Performance CX, 250 W
Display
Bosch, Purion
Electricals
BatteryBosch, PowerTube, 500 Wh
Head LampHerrmans, H-Black MR4, 40 lm
Tail LampBusch & Müller, Shine Evo, integrated in the luggage carrier
Brakes
Front BrakeShimano, MT400, 180 mm, 2-piston disc brake
Rear BrakeShimano, MT400, 160 mm, 2-piston disc brake
Brake LeverShimano, MT401-3, Aluminium
Chassis and Suspension
FrameWinora, Aluminium 6061, multiformed, THT, Aluminium 6061, Disc brake Post Mount
Tyres
Wheels / RimRyde, Zac421, hollow rim, Aluminium
Front TyreSchwalbe, Marathon Almotion, 55-584, 27.5" x 2.15"
Rear TyreSchwalbe, Marathon Almotion, 55-584, 27.5" x 2.15"
TubeDunlop valve
Dimensions
Weight24.8 kg
Additional Details
Crank Arm : Winora, forged, Aluminium
Clamping Ring : Quick release, 34.9 mm
Shift Lever : Shimano, Deore M6000, Rapidfire, 10 speed
Carrier : Racktime, RT-336, 25.0 kg
Fenders : Eurofender, Winora schwarz matt, Chromoplastics
Lock : Abus, upgradable over Plus System
