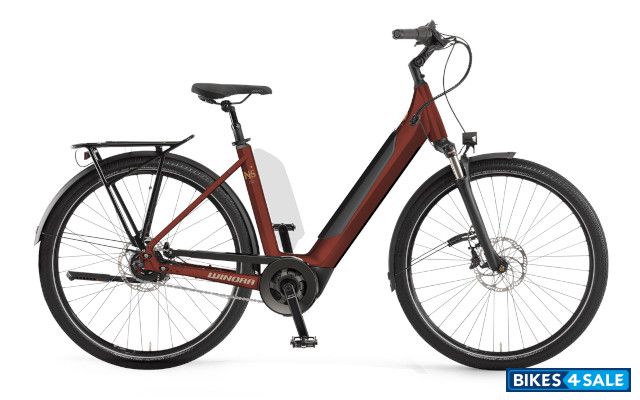

Winora Sinus N5f Monotube

Price, review, features and specs

Rate Winora Sinus N5f Monotube:
4.2/5 (5 votes)
Add To Compare
Write a Review
Winora Sinus N5f Monotube Price 3669 [Berlin, Germany]

The given price can change depending on the colour, accessories and other features.

Country, City Showroom Price On Road Price
Germany, Berlin € 3669 --
Germany, Bochum € 3669 --
Germany, Bremen € 3669 --
Germany, Cologne € 3669 --
Germany, Duisburg € 3669 --
Germany, Dusseldorf € 3669 --
Germany, Essen € 3669 --
Germany, Hamburg € 3669 --
Germany, Nuremberg € 3669 --
Germany, Wuppertal € 3669 --
Buy new Winora Sinus N5f Monotube

Book a Test Drive through Bikes4Sale and we will try to get you the best offer for Winora Sinus N5f Monotube.

For Exciting Offers, Book a Test Drive
By submitting, you agree to our Terms & Conditions.
431
Similar Bicycles
Colours

Maroonred Matt

Technical Specifications
Vehicle TypeBicycle
FuelElectric
Maximum Torque65 NM
Load Carrying CapacityPermitted Total Weight : 130 Kg
Top Speed25 kmph
StemAlu, winkelverstellbar, A-head, Bar bore: 31.8 mm
HandlebarErgobar, oversize , 640 mm
ForkSR Suntour, NEX E25-HLO , Lockout, Steel spring, Travel= 63 mm, Aluminium steerer tube 1 1/8" - 1 1/2" tapered
SeatpostAluminium, Patent suspension, 31.6 mm
GripHerrmans, Click Ergo - lock on grips
PedalsVP, E461, Aluminium, with Reflector
ChainShimano, pinion, 27 - teeth
GearGear Shift : Shimano, Nexus
SaddleSelle Royal, Viento
HeadsetCane Creek, Viscoset, Aluminium
Hub : FrontAluminium hub , Centerlock
Hub : RearShimano, Nexus
SpokeStainless spokes, Black
ChainringsSamox, 38 teeth
SprocketShimano, pinion, 27 - teeth
Bottom BracketIntegrated in the motor
StandUrsus, Mooi , Rear stand
Motor Details
Bosch, Performance Line , 250W
Display
Bosch, Intuvia
Electricals
BatteryBosch, PowerTube, 625 Wh
Head LampHerrmans, H-Black MR4, 40 lm
Tail LampBusch & Muller, Shine Evo, integrated in the luggage carrier
Brakes
Front BrakeShimano, MT410, 180 mm, 2-piston disc brake
Rear BrakeShimano, MT410, 160 mm, 2-piston disc brake
Brake LeverShimano, MT402, Aluminium
Chassis and Suspension
FrameWinora, aluminium 6061, hydroformed, THT, GCI, Aluminium 6061
Tyres
Wheels / RimRyde, Zac421, hollow rim, Aluminium
Front TyreSchwalbe, Marathon Almotion, 55-584, 27.5" x 2.15"
Rear TyreSchwalbe, Marathon Almotion, 55-584, 27.5" x 2.15"
TubeDunlop valve
Additional Details
Crank Arm : Winora, forged, Aluminium
Clamping Ring : Quick release, 34.9 mm
Shift Lever : Shimano, Nexus, Twist shifter, 5 Speed
Chain Guard : Herrmans, Slyde38
Dynamo : Via system battery
Carrier : Racktime, RT-336, 25.0 kg
Fenders : SKS, Chromoplastics
Lock : Abus, upgradable over Plus System
