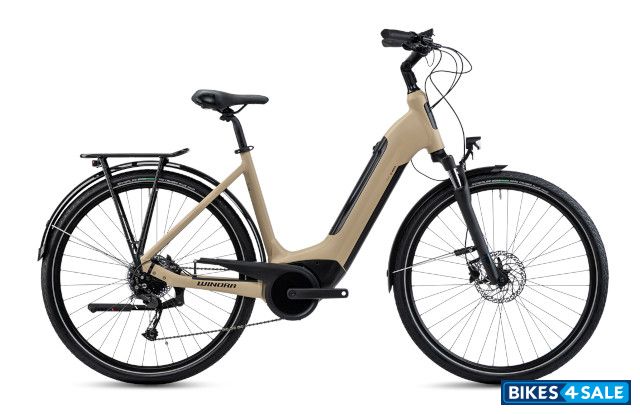

Winora Tria 9 Wave Electric Bicycle

Price, features and specs

Rate Winora Tria 9 Wave:
4.3/5 (3 votes)
Winora Tria 9 Wave Price 2799 [Berlin, Germany]

The given price can change depending on the colour, accessories and other features.

Country, City Showroom Price On Road Price
Germany, Berlin € 2799 --
Buy new Winora Tria 9 Wave

Book a Test Drive through Bikes4Sale and we will try to get you the best offer for Winora Tria 9 Wave.

For Exciting Offers, Book a Test Drive
By submitting, you agree to our Terms & Conditions.
5626
Colours

Iced Coffee Matt
Black Matt

Technical Specifications
Vehicle TypeBicycle
FuelElectric
Maximum Torque50 NM
Top Speed25 kmph
StemAluminium, angle ajustable, A-head, 31.8 mm
HandlebarErgobar, oversize, 640 mm
ForkSR Suntour, NEX E25, Steel spring, 63 mm travel, Steel steerer tube 1 1/8" - 1 1/2" tapered, Quick release 100mm
SeatpostXLC, Aluminium, Patent suspension, 31.6 mm
GripXLC, Comfort bo3
PedalsVP, E461, Aluminium, with Reflector
ChainKMC, e9S
ShiftersShift Lever : Shimano, Alivio M3100, Trigger switch
SaddleSelle Royal, Wave
HeadsetFeimin, A-Head Tapered, Ball bearing
Derailleur : RearShimano, Alivio M3100
Hub : FrontShimano, TX505, Centerlock
Hub : RearShimano, TX505-8, Centerlock
SpokeStainless spokes
ChainringsSamox, 38 teeth
SprocketShimano, HG200, 11 - 34 teeth
Bottom BracketIntegrated in the motor
StandUrsus, Mooi, Rear stand
Motor Details
Bosch, Active Plus, 250 Wh
Display
Bosch, Intuvia
Electricals
BatteryBosch, PowerTube, 500 Wh
Head LampHerrmans, H-Black MR-GO
Tail LampAXA, Juno Ebike
Brakes
Front BrakeShimano, MT200, 2-piston disc brake
Rear BrakeShimano, MT200, 2-piston disc brake
Brake LeverShimano, MT201, Aluminium
Chassis and Suspension
FrameWinora, Aluminium 6061, GCOPD, THT, Aluminium 6061
Tyres
Wheels / RimRyde, Eco21, With Eyelets, Double Wall, Aluminium
Front TyreSchwalbe, Road Cruiser, 50-622, 28 x 2.0 inch
Rear TyreSchwalbe, Road Cruiser, 50-622, 28 x 2.0 inch
TubeDunlop valve
Additional Details
Crank Arm : Winora, forged, Aluminium
Clamping Ring : Quick release, Quick release, 34.9 mm
Chain Guard : SKS, Chainbow-E 38T
Dynamo : Via system battery
Carrier : System carrier, 25 kg
Fenders : Eurofender, Tempo, Chromoplastics
