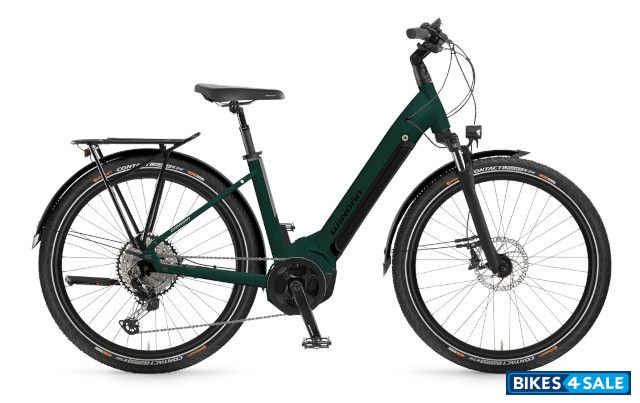

Winora Yucatan 10 Monotube Electric Bicycle

Price, features and specs

Rate Winora Yucatan 10 Monotube:
3.8/5 (4 votes)
Winora Yucatan 10 Monotube Price 2999 [Nuremberg, Germany]

The given price can change depending on the colour, accessories and other features.

Country, City Showroom Price On Road Price
Germany, Nuremberg € 2999 --

Emerald Matt

Technical Specifications
Vehicle TypeBicycle
Maximum Torque70 NM
Load Carrying CapacityPermitted Total Weight : 130 Kg
Top Speed25 kmph
StemAlu, winkelverstellbar, A-head, Bar bore: 31.8 mm
HandlebarErgoriser, oversize, 720 mm
ForkSR Suntour, NEX E25-HLO , Lockout, Steel spring, Travel= 63 mm, Aluminium steerer tube 1 1/8" - 1 1/2" tapered
SeatpostAluminium, Patent suspension, 31.6 mm
GripXLC, Comfort bo3
PedalsVP, E461, Aluminium, with Reflector
ChainKMC, e10S
SaddleSelle Royal, Essenza
HeadsetFeimin, A-Head Tapered, Aluminium, Cartridge
Derailleur : RearShimano, Deore M4120
Hub : FrontAlu hub
Hub : RearAlu hub
SpokeSapim, Leader, Black
ChainringsSteel, 38 teeth
SprocketShimano, CSM4100, 11 - 42 teeth
Bottom BracketIntegrated in the motor
StandUrsus, Mooi , Rear stand
Motor Details
Yamaha, PW-ST System, 250W
Yamaha, Side Switch, 1.7" LCD, 7 functions
BatteryInTube, 630 Wh
Head LampHerrmans, H-Black MR4, 40 lm
Tail LampAXA, Juno Ebike
Front BrakeTektro, T275, 180 mm, 2-piston disc brake
Rear BrakeTektro, T275, 160 mm, 2-piston disc brake
Brake LeverTektro, T275, Aluminium
Chassis and Suspension
FrameWinora, Aluminium 6061, Yamaha InTube 630, HD Interface, Aluminium 6061
Wheels / RimSchurmann, Yak25, with eyelets, hollow rim, Aluminium
Front TyreContinental, Contact Cruiser, 62-584, 27.5" x 2.4"
Rear TyreContinental, Contact Cruiser, 62-584, 27.5" x 2.4"
TubePresta valve
Additional Details
Crank Arm : Winora, forged, Aluminium
Clamping Ring : Quick release, 34.9 mm
Shift Lever : Shimano, Deore M4100, Trigger switch, 10 Speed
Dynamo : Via system battery
Carrier : Racktime, RT-336, 25.0 kg
Fenders : SKS, Chromoplastics
