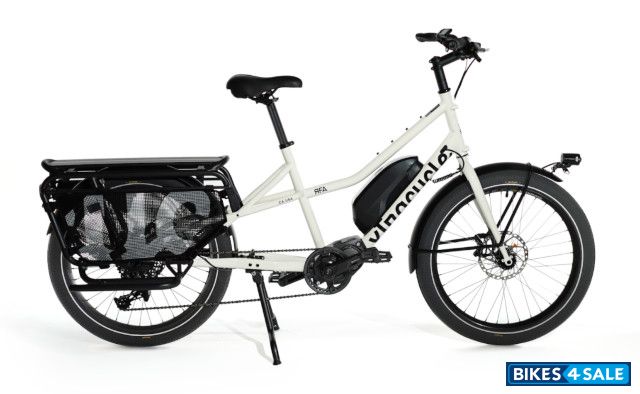

Xtracycle RFA Electric Bicycle

Price, features and specs

Rate Xtracycle RFA:
4.3/5 (3 votes)
Xtracycle RFA Price $ 4499 [Albuquerque, United States]

The given price can change depending on the colour, accessories and other features.

Country, City Showroom Price On Road Price
United States, Albuquerque $ 4499 --
United States, Anchorage $ 4499 --
United States, Atlanta $ 4499 --
United States, Austin $ 4499 --
United States, Baltimore $ 4499 --
United States, Billings $ 4499 --
United States, Birmingham $ 4499 --
United States, Boston $ 4499 --
United States, Bridgeport $ 4499 --
United States, Burlington $ 4499 --
View price in other cities
Buy new Xtracycle RFA

Book a Test Drive through Bikes4Sale and we will try to get you the best offer for Xtracycle RFA.

For Exciting Offers, Book a Test Drive
By submitting, you agree to our Terms & Conditions.
1902
Colours

Off-White (glossy)
Black (matte)

Technical Specifications
Vehicle TypeBicycle
FuelElectric
Load Carrying CapacityMaximum carrying capacity : 400 pounds, including rider
Top Speed32 kmph
StemKalloy AS007N. Available lengths: 60 mm (S), 90 mm (M), 120 mm (L)
HandlebarKalloy AL078L, 31.8 mm, 45 mm rise, 24-degree backsweep, 640 mm width
Fork4130 Chromoly steel
SeatSeat Clamp : Xtracycle LF-5233 34.9 mm bolt-on
SeatpostKalloy SP3D1, 31.6 mm. Available lengths: 300 mm (S), 400 mm (M), 450 mm (L)
GripMarwi 7GP-03-L, 125 mm long
CranksetShimano FC-EM600, 170 mm; FSA 38 tooth cog
PedalsVP-535
ChainTaya e10T-EPT (RFA Utility - 144 Links, RFA Sport - 123 Links)
ShiftersSRAM NX 11-speed trigger shifter with X-ACTUATION (Model number SL-NX-1-A1)
SaddleXtracycle Comfort Saddle (2021)
HeadsetFSA No. 18
Derailleur : RearSram NX11 X-HORIZON (Model number RD-NX-1-A1)
Hub : FrontKT QL-XC2R, 168 mm quick release
Hub : RearKT QL-XC2F, 15 mm thru axle
SpokePillar 14/15 gauge stainless with PB15 14L brass nipples
CassetteSRAM GX PG-1130 A1, 11-speed, 11 tooth - 42 tooth
StandKickstand RFA KickBack
Electricals
BatteryShimano STEPS BT-E8016, 630 wH (downtube, external)
ChargerShimano STEPS EC-E8004-2 (120 V AC, 50 - 60 Hz)
Head LampHerrmans H-Black Pro E 6-12V (attached to fender)
Tail LampHerrmans H-Track Dynamo, 6V (included)
Brakes
Front BrakeTektro M745, 4 piston hydraulic
Rotor : Shimano SM-RT64, 180 mm
Rear BrakeTektro M745, 4 piston hydraulic
Rotor : Shimano STEPS RT-EM600-M, 180 mm
Chassis and Suspension
Frame4130 Chromoly steel
Tyres
Wheels / RimFront rim : 24" Alex MD-30/36H
Rear rim : 24" Alex MD-30/36H
Front TyreSchwalbe Crazy Bob 24 x 2.35"
Rear TyreSchwalbe Crazy Bob 24 x 2.35"
Dimensions
Weight27 kg
Additional Details
Frame Size : S,M, L
Rear rack : RFA Utility RearRack (RFA Sport RearRack available separately)
Cabling : Internal
E-assist : Shimano STEPS EP8
E-assist cycling computer : Shimano SC-E5003
Tire compatibility : 24" tires, max width of 2.5" only
Fenders : Aluminum (included)
Also includes : RFA WheelSkirts (2021), RFA FootRests (2021)
E-assist class : Class 1
