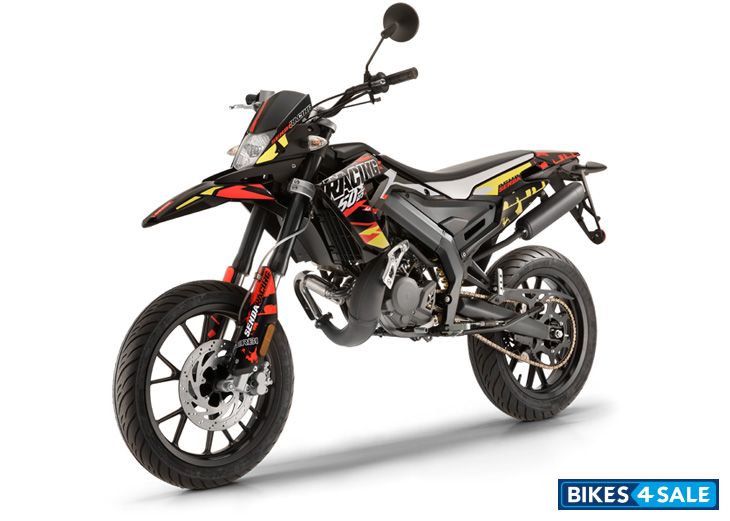

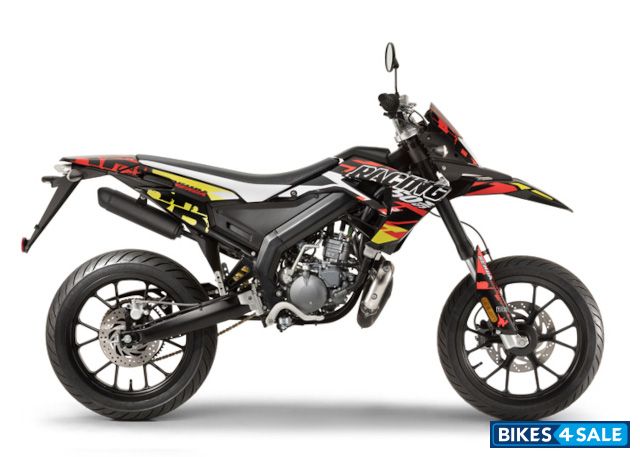

Derbi Senda Racing 50 SM Motorcycle

Price, features and specs

Rate Derbi Senda Racing 50 SM:
4.5/5 (4 votes)
Derbi Senda Racing 50 SM Price

Not Available

Buy new Derbi Senda Racing 50 SM

Book a Test Drive through Bikes4Sale and we will try to get you the best offer for Derbi Senda Racing 50 SM.

For Exciting Offers, Book a Test Drive
By submitting, you agree to our Terms & Conditions.
7736
Colours

Black and Yellow

Technical Specifications
Vehicle TypeMotorcycle
FuelPetrol
Engine Displacement50.00 cc
Engine DetailsSingle cylinder 2-stroke engine with light alloy cylinder, liquid cooled
Engine StartingKick Starter
Bore x Stroke39.88mm x 40mm
Compression Ratio11.5:1
Engine LubricationAutomatic mixer
ClutchMulti plate wet clutch
Fuel SystemWith electronically controlled DELL'ORTO PHVA 17.5 carburettor
Transmission6 speed
Drive ratio:
1st 11/34
2nd 15/30
3rd 18/27
4th 20/24
5th 22/23
6th 23/22
GearPrimary Drive: Straight Cut Gears, Gear Ratio: 21/78
Final Drive: Chain, Gear Ratio: 11/59
SaddleSaddle height: 865 mm
Brakes
Front BrakeØ 260 mm stainless steel disc with floating calliper, 2 pistons
Rear BrakeØ 220 mm stainless steel disc with floating calliper
Chassis and Suspension
FrameTwin-tube steel frame
Front SuspensionUpside down fork with Ø 41 mm stanchions, wheel travel 240 mm
Rear SuspensionSwingarm in high resistance steel. Hydraulic monoshock absorber
Tyres
Wheels / RimWheel travel 200 mm
Rims: Lightweight alloy wheels,
Front: 2.75 X 17"
Rear: 3.5 X 17”
Front Tyre100/80 – 17”
Rear Tyre130/70 -17”
Dimensions
Length2045 mm
Width815 mm
Wheelbase1390 mm
Kerb Weight104 kg
Fuel Tank Capacity7 litres
Additional Details
Consumption: 3,14 L/100 Km
Co2 Emissions: 76 G / Km
Approval: Euro 4
